Camera Lenses

• Focal length: 15–40 mm (2.7x zoom)
• Aperture: T2.6 (f/2.4), no ramping
• Frame: PL
• Coverage: Super 35 (S35+, Ø 31.4 mm)
• Minimum focus distance: 0.60 m
• Focus: Internal
• Front diameter: 114 mm
• Length: 186 mm
• Weight: approx. 1.92 kg

• Focal length: 15 mm
• Maximum aperture: T1.8
• Frame: LPL
• Cover: large format (LF) / full format
• Minimum focus distance: 0.35 m (from the sensor)
• Front diameter: 156 mm
• Length (from the base plate): 197 mm
• Weight: 2.8 kg
• Horizontal field of view: 102° (LF Open Gate)
• Lens metadata: ARRI LDS-2 / Cooke /i

• Mount: LPL (LDS-2 / Cooke i metadata)
• Coverage: Large format (ALEXA LF / Mini LF)
• Focal length: 18 mm
• Aperture: T1.8 – T22
• Minimum focus distance: 0.35 m (from the sensor plane)
• Front diameter: 114 mm
• Length: 178 mm (from the frame)
• Weight: approx. 2.0 kg

• Focal length: 25 mm
• Maximum aperture: T1.8
• Frame: LPL
• Cover: large format (LF) / full format
• Minimum focus distance: 0.35 m (from the sensor)
• Front diameter: 114 mm
• Length (from the base plate): 178 mm
• Weight: 1.9 kg
• Horizontal field of view: 73° (LF Open Gate)
• Lens metadata: ARRI LDS-2 / Cooke /i

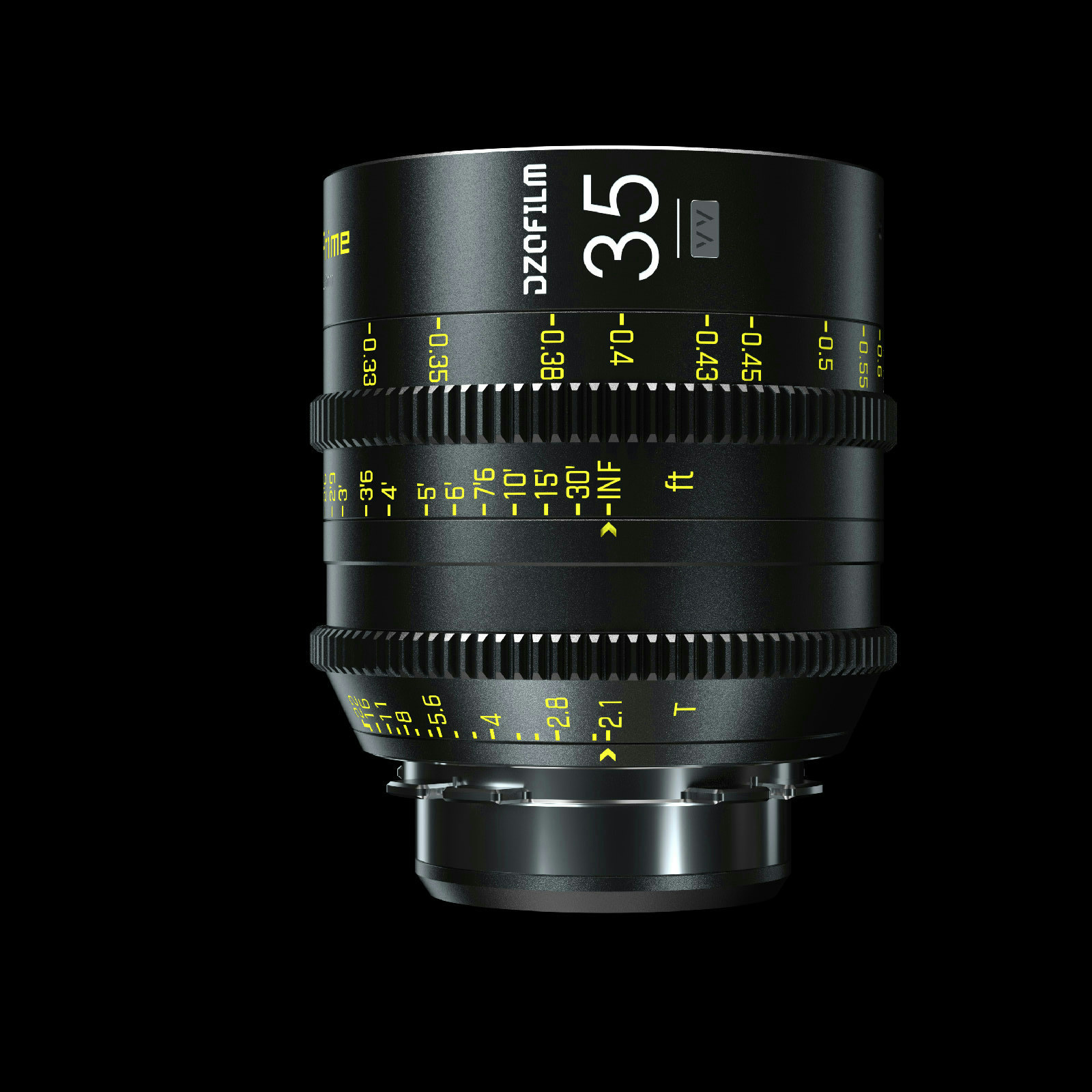

• Type: Large-format cinema fixed-focal-length lens
• Focal length: 35 mm
• Aperture: T1.8 – T22
• Mount: LPL (LDS-2 / Cooke i metadata)
• Cover: ARRI LF large format
• Minimum focusing distance: 0.35 m
• Front diameter: 114 mm
• Length from the mount: 178 mm
• Weight: 1.7 kg
• Horizontal field of view: 55.5° (LF Open Gate)

• Type: Large-format cinema fixed-focal-length lens
• Focal length: 58 mm
• Aperture: T1.8 – T22
• Mount: LPL (LDS-2 / Cooke i metadata)
• Minimum focus distance: 0.45 m (from the sensor plane)
• Front diameter: 114 mm
• Length: 178 mm (from the frame)
• Weight: 2.0 kg

Technical Specifications: DZO Vespid 50mm T2.1

● Type: Full-frame prime cinema lens
● Focal length: 50 mm
● Aperture: T2.1 to T22
● Image coverage: up to 46.5 mm (full frame / VistaVision)
● Available mounts: PL and EF (interchangeable mount)
● Minimum focus distance: 0.45 m
● Front diameter: 80 mm
● Filter thread: 77 mm
● Focus ring rotation: 270°
● Iris ring rotation: 70°
● Iris: 16 blades
● Standard cinema gears: 0.8 mod (focus and iris)
● Markings: meter or foot scales depending on version, markings on both sides
● Focus: internal (no rotation of the front lens)

• Type: 10x cinema zoom
• Focal length: 25–250 mm
• Opening: T3.5
• Frame: PL
• Coverage: 35 mm / Super 35 (image diagonal 30 mm)
• Minimum focus distance: approx. 1.70 m (5'7")
• Front diameter: 136 mm
• Length: approx. 406 mm
• Weight: approx. 4.8 kg

• Focal length range: 45–135 mm (3x zoom, full-frame configuration)
• Aperture: T3 - T32, constant
• Aspect ratio: full frame / VistaVision (image circle: 46.3 mm)
• Convertible: Interchangeable rear block for 30–90 mm T2 to Super 35
• Minimum focusing distance: 0.61 m (2 ft)
• Aperture blades: 9
• Front diameter: 114 mm (110 mm filter thread)
• Mounts: Interchangeable PL, EF, or E
• Length: approximately 226 mm
• Weight: about 2 kg

• Type: cinema zoom lens with interchangeable modules
• S35 Configuration: 15–40 mm T2, 30.4 mm image circle
• FF/VV configuration: 22–60 mm T3, image circle 46.3 mm
• Zoom ratio: 2.7x
• Minimum focus distance: approx. 0.61 m
• Front diameter: 114 mm
• Mounts: PL (E, EF, RF available)
• Weight: approx. 2.1 kg

• Focal length: 22–60 mm in full-frame mode (2.6× zoom)
• Opening: Constant T3
• Aspect ratio: full frame / VistaVision (FF rear group)
• Alternative configuration: 15–40 mm T2 in Super 35 (S35 rear unit)
• Mount: PL (interchangeable EF / Sony E)
• Diaphragm: 9 blades
• Front diameter: 114 mm
• Filter: 105 mm
• Rings: focus, iris, and zoom in 0.8-module increments

• Focal length range: 30–90 mm (Super 35 configuration)
• Aperture: T2 (S35 configuration)
• Coverage: Super 35 / APS-C
• Option: FF rear group → 45–135 mm T3 full-frame
• Mount: Interchangeable PL / EF / E
• Front diameter: 114 mm
• Length: approximately 226 mm
• Weight: approximately 2.13 kg

• Frame: PL
• Coverage: 35 mm Academy (ø30 mm; S35+ ø31.4 mm with extender)
• Focal length range: 24–290 mm (12x zoom)
• Aperture: Constant T2.8, no ramping (f/2.5)
• Minimum focus distance: 1.22 m
• Focus: Internal
• Front diameter: 162 mm
• Length: 440 mm
• Weight: approx. 11 kg

• Type: Long-range cinema zoom (12x)
• Focal length: 28–340 mm
• Opening: Constant T3.2
• Frame: PL
• Coverage: Super 35 (31.4 mm image circle)
• Minimum focusing distance: 1.23 m
• Length: 454 mm
• Weight: approx. 11.1 kg

• Frame: PL
• Cover: S35+ (ø31.4 mm)
• Focal length range: 19.5–94 mm (4.7x zoom)
• Aperture: T2.6
• Minimum focus distance: 0.62 m
• Focus rotation: 329° (50 steps)
• Front diameter: 136 mm
• Length: 335 mm
• Weight: 5.6 kg

• Focal lengths: 25–250 mm (10× zoom)
• Opening: T3.7 – T22
• Frame: PL
• Format: 35 mm film / Super 35
• Minimum focus distance: 1.83 m (6', from the image plane)
• Front diameter: 124 mm
• Length: approx. 280 mm (11", front-mounted with PL flange)
• Weight: approx. 4.5 kg
• Special feature: no infinity stop on the focus ring

• Focal length range: 28–76 mm (2.7× zoom)
• Aperture: f/2.6 constant
• Aspect Ratio: Super 35 / Academy (image circle 31.4 mm)
• Mount: PL (interchangeable)
• Minimum focusing distance: 0.61 m
• Front diameter: 114 mm
• Focus rotation: 320°
• Length: 186 mm
• Weight: 1.91 kg

• Focal length: 30–80 mm (2.7× zoom)
• Aperture: Constant f/2.8
• Frame: PL
• Coverage: Super 35 (diagonal image size 31.1 mm)
• Minimum focus distance: 0.61 m
• Weight: approximately 1.9 kg

• Focal length range: 45–120 mm (2.7x zoom)
• Aperture: Constant f/2.8
• Frame: PL
• Coverage: Super 35+ (image diagonal 31.4 mm)
• Minimum focusing distance: 0.94 m
• Length: 203 mm
• Front diameter: 114 mm
• Weight: 1.95 kg

• Focal length range: 25–250 mm (10x zoom)
• Aperture: Constant f/3.5, no ramping (f/3.2)
• Frame: PL
• Coverage: Super 35+ (image diagonal 31.4 mm)
• Minimum focusing distance: 1.22 m
• Length: 377.4 mm
• Front diameter: 136 mm
• Weight: 7.3 kg

• Focal length range: 24–75 mm
• Aperture: T2.8 to T22, constant
• Cover: large format (LF Open Gate)
• Mount: LPL with LDS-2 and Cooke /i metadata
• Minimum focusing distance: 0.7 m
• Front diameter: 114 mm
• Length: 244 mm (from the mount)
• Weight: 3.7 kg

• Type: Large-format cinema zoom lens
• Focal length: 65–300 mm (110.5–510 mm with a 1.7x extender)
• Aperture: T2.8 – T22 (T4.95 max with extender)
• Mount: LPL (LDS-2 / Cooke i metadata)
• Cover: ARRI LF large format
• Minimum focusing distance: 1.8 m
• Front diameter: 156 mm
• Length from the mount: 420 mm
• Weight: 8.1 kg (8.7 kg with extender)

• Focal length: 25–250 mm (37.5–375 mm with extender)
• Zoom: 10x, built-in 1.5x extender
• Aperture: f/2.95 (25–187 mm) – f/3.95 (250 mm)
• Coverage: Super 35 (4K performance)
• Frame: PL
• Minimum focus distance: 1.2 m
• Front diameter: 114 mm
• Aperture: 11 blades, stepless iris
• Servo: removable unit, LCD screen, 16-bit metadata
• Weight: approx. 3.06 kg

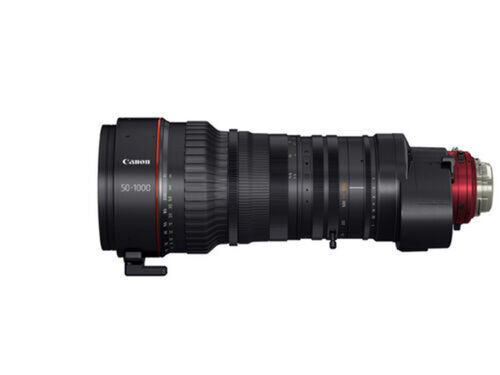

• Focal length: 50–1,000 mm (75–1,500 mm with built-in 1.5x extender)
• Aperture: T5.0 (50–560 mm) to T8.9 (1,000 mm)
• Zoom ratio: 20x
• Frame: PL
• Coverage: Super 35 (31.4 mm image circle)
• Minimum focusing distance: 3.5 m
• Front diameter: 136 mm
• Weight: 6.6 kg
• Removable digital servo grip (zoom/iris/focus)

• Type: cinema zoom lens with detachable servo
• Focal length range: 17–120 mm (7x zoom)
• Aperture: f/2.95 (17–91 mm) to f/3.9 (120 mm)
• Cover: Super 35
• Minimum focus distance: 0.85 m
• Front diameter: 114 mm
• Diaphragm blades: 11
• Dimensions: 174.2 × 125 × 262.9 mm
• Weight: approx. 2.9 kg

• Frame: PL
• Cover: Super 35
• Focal length range: 30–300 mm (10× zoom)
• Aperture: f/2.95 (30–240 mm) to f/3.7 (300 mm)
• Minimum focus distance: 1.5 m
• Iris: 11 blades
• Optics: fluorite and aspheric elements
• Focus breathing: virtually zero (internal focus)
• Front diameter: 136 mm
• Weight: 5.8 kg

• Type: Portable HD ENG broadcast zoom lens (2/3")
• Zoom ratio: 14×
• Focal length: 4.3–60 mm (8.6–120 mm with a 2× extender)
• Maximum aperture: f/1.8 (from 4.3 to 40 mm)
• Extender: 2× built-in
• Minimum subject distance: 0.3 m (10 mm in macro mode)
• Frame: B4
• Weight: approximately 2 kg (depending on the IRSE/IASE version)

• Type: Portable HDTV Broadcast Zoom
• Format: 2/3" cameras, B4 mount
• Zoom: 22x
• Focal length: 7.6 – 168 mm (15.2 – 336 mm with a 2x extender)
• Maximum aperture: f/1.8
• Extender: 2x built-in
• Field of view: 64.6° wide-angle (16:9)
• Versions: IRSE A / IASE A (servo)
• Weight: approx. 1.81 kg

• Model: HJ40x14B IASD-V
• Focal length: 14–560 mm (1,120 mm with a 2x extender)
• Zoom ratio: 40x
• Mount: B4 (2/3" cameras)
• Minimum focusing distance: 2.8 m (macro mode available)
• Integrated Optical Image Stabilizer
• Zoom/Focus Servo Controls

• Focal length: 25 mm
• Opening: T2.1 through T22
• Cover: full frame (image circle 46.3 mm)
• Mount: interchangeable PL/EF (also E, F, MFT)
• Minimum focusing distance: 0.26 m
• Front diameter: 95 mm
• Focus rotation: 300°
• Length: 83.7 mm
• Weight: 0.82 kg (PL version)

• Type: fixed-focal-length cinema lens

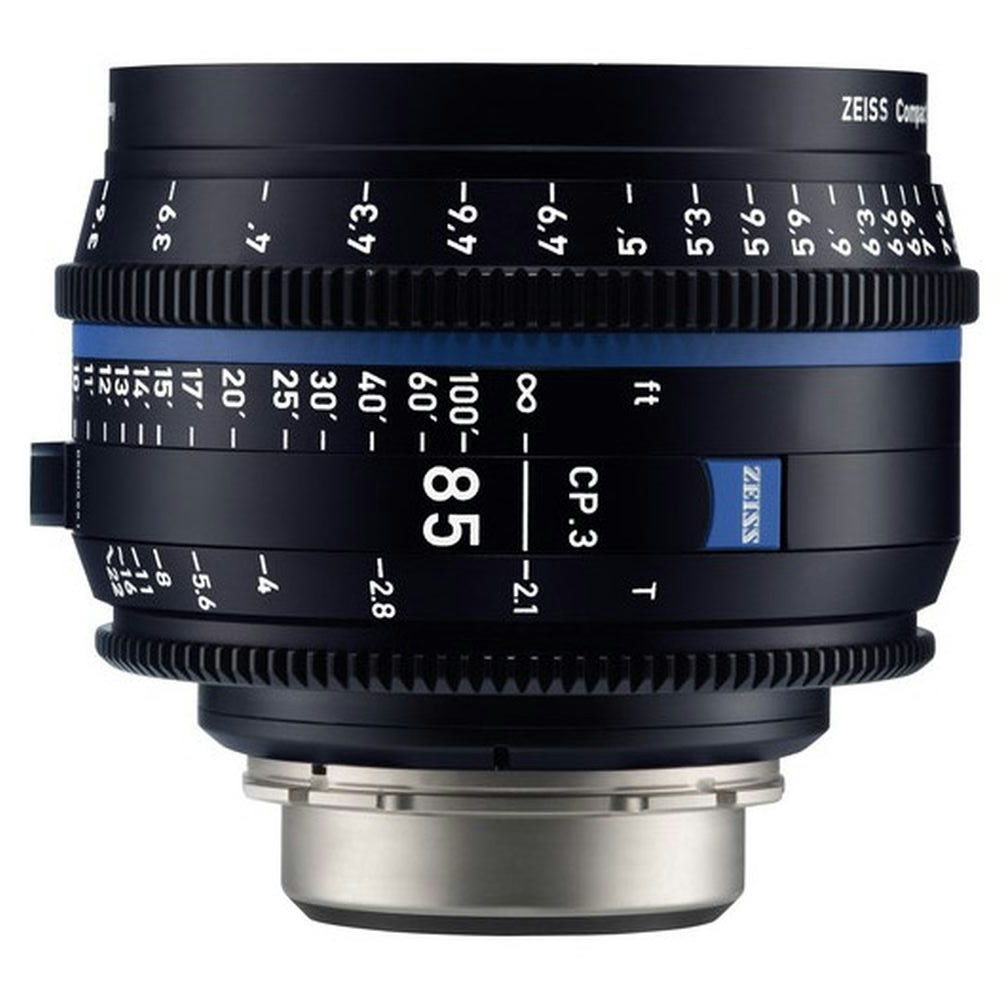

• Focal length: 85 mm
• Opening: T2.1 – T22
• Cover: full-page
• Mount: Interchangeable PL / EF (also F, E, MFT)
• Minimum focus distance: 1.0 m
• Front diameter: 95 mm
• Weight: 0.88 kg

• Type: wide-angle cinema zoom lens
• Focal length range: 15–30 mm
• Aperture: Constant f/2.9–f/22
• Cover: full-page
• Minimum focus distance: 0.55 m
• Front diameter: 114 mm
• Length: 198 mm
• Mounts: interchangeable PL / EF / E / F / MFT
• Weight: approx. 2.6 kg

• Focal length: 28–80 mm
• Aperture: Constant T2.9 (T2.9–T22)
• Coverage: Full Frame / Vista Vision (image circle ø46.3 mm)
• Mounts: interchangeable PL, EF, E, F, MFT
• Minimum focus distance: ≈0.81 m (2'8")
• Front diameter: 95 mm
• Filter thread: none (filters via matte box)
• Length: ≈196 mm (7.7")
• Weight: ≈2.5 kg (5.5 lb)

• Type: telephoto movie zoom lens
• Focal length range: 70–200 mm
• Aperture: Constant f/2.9–f/22
• Cover: full size (36 × 24 mm)
• Minimum focus distance: 1.5 m
• Front diameter: 95 mm
• Length: 250 mm
• Mounts: interchangeable PL / EF / E / F / MFT
• Weight: approx. 2.8 kg

• Focal length: 18 mm
• Opening: T2.4 – T16
• Coverage: full format (99° field of view)
• Lenses: interchangeable E, RF, L, M (copy provided in E or RF)
• Front diameter: 82 mm
• Filter thread: M77 × 0.75
• Diaphragm: 9 blades
• Rotation: 160°, iris 78°
• Length: 109 mm
• Weight: approx. 688 g

• Frame: DJI DL
• Cover: full size 36 × 24 mm
• Focal length: 17–28 mm (built-in servo-driven zoom)
• Opening: T3.0 – T22
• Minimum focus distance: 0.19 m (at 17 mm) / 0.26 m (at 28 mm)
• Filter diameter: 67 mm
• Weight: approx. 520 g (with sunshade)
• Compatibility: DJI Ronin 4D (Zenmuse X9-6K / X9-8K)

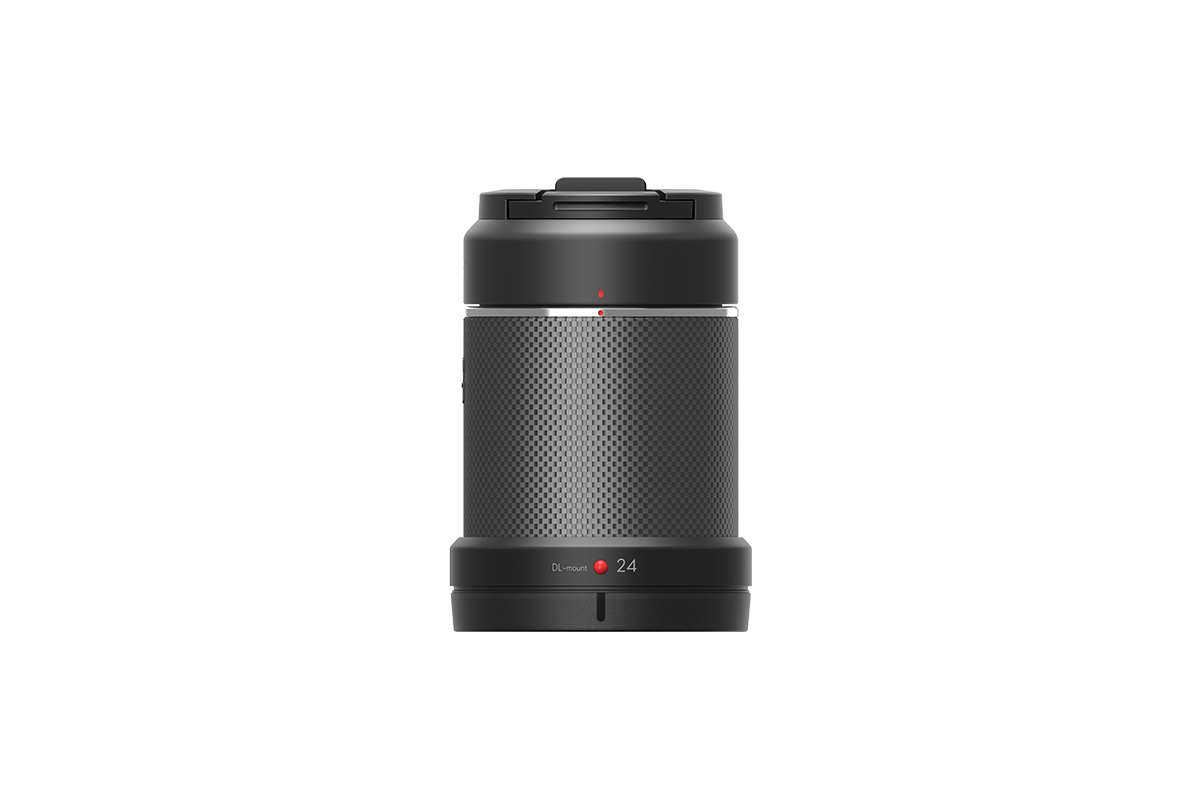

• Frame: DJI DL
• Focal length: 24 mm
• Maximum aperture: f/2.8
• Shutter: Central (Leaf Shutter)
• Compatibility: Zenmuse X7, X9-6K, X9-8K Air, X9-8K, P1
• Construction: carbon fiber monocoque
• Dimensions: 55 × 62 × 71.2 mm

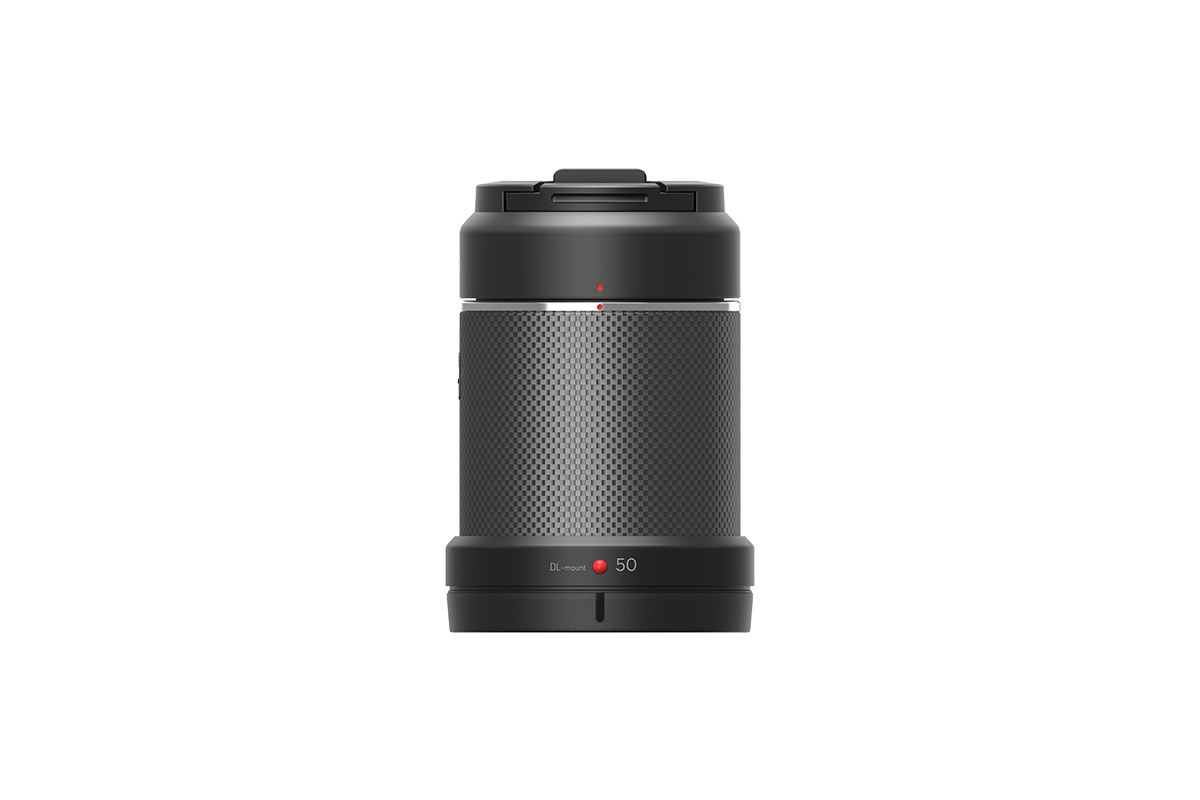

• Weight: 180 g

• Focal length: 50 mm
• Aperture: f/2.8
• Frame: DJI DL
• Type: fixed focal length (LS ASPH, central shutter)
• Construction: monocoque carbon-fiber hull
• Focus: motorized, camera-controlled (AF)
• Compatibility: Zenmuse X7, X9-8K, P1, Ronin 4D, Inspire 2, and 3

• Mount: Canon EF (interchangeable PL / EF / LPL)
• Cover: Full-page

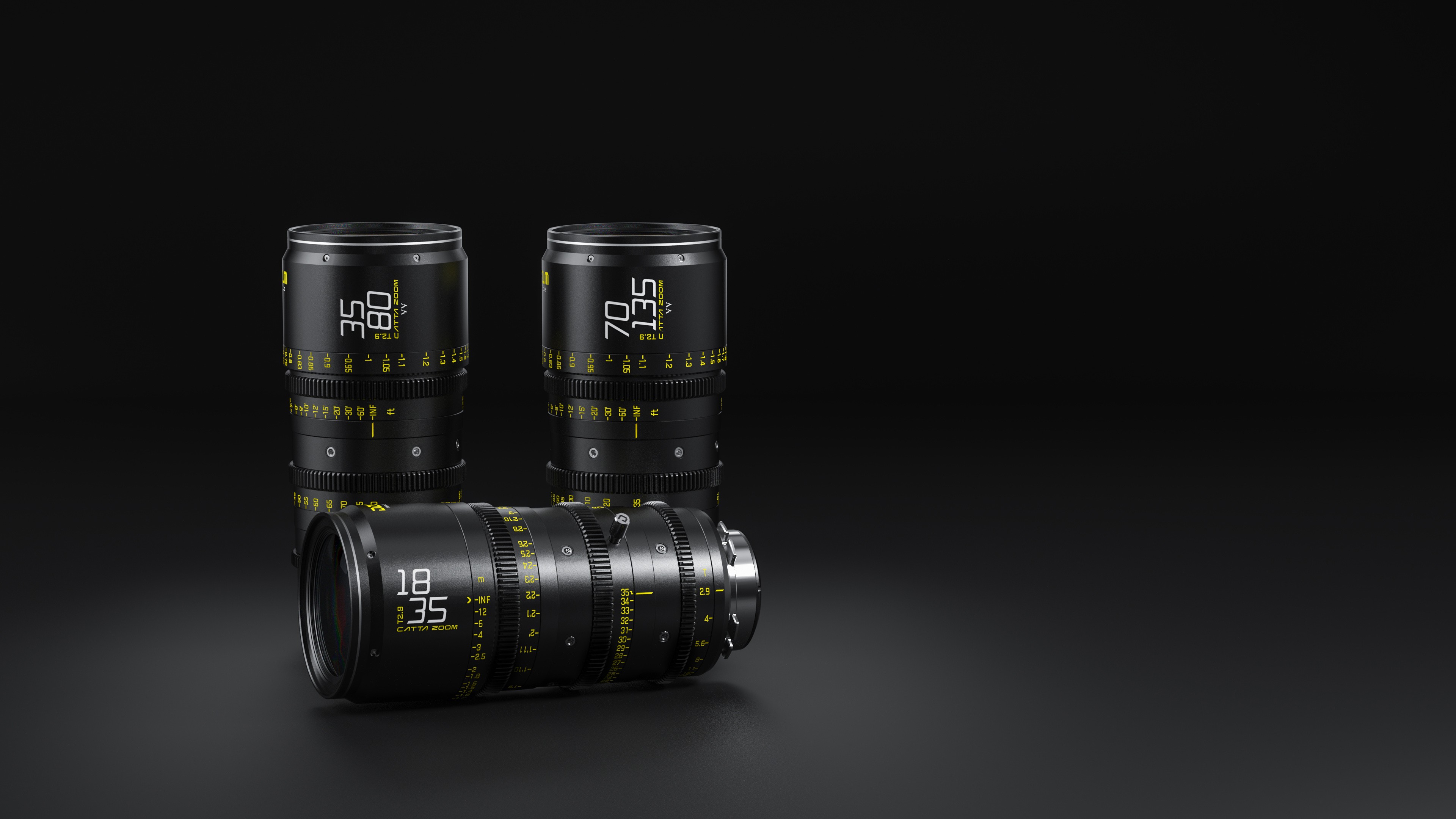

• Focal length range: 35–80 mm
• Opening: Constant T2.9 – T22
• Minimum focus distance: 0.74 m
• Series: Catta Ace FF (compatible with the 18-35 and 70-135 mm lenses)

• Focal length range: 35–80 mm
• Aperture: T2.9 to T22, constant
• Cover: full frame (43.5 mm image circle)
• Mount: Interchangeable PL / EF (LPL available)
• Minimum focusing distance: 0.74 m
• Front diameter: 80 mm
• Filter thread: 77 mm
• Length: 179.5 mm
• Weight: approximately 1.53 kg

• Type: cinema zoom
• Cover: full-page
• Focal length: 18–35 mm
• Aperture: Constant T2.9 (T2.9 – T22)
• Mount: PL (interchangeable EF / LPL)
• Minimum focus distance: 0.51 m
• Diaphragm: 20 blades

• Focal length: 70–135 mm
• Aperture: f/2.9–22 constant
• Frame: PL
• Cover: full frame / VV (image circle Ø 46.5 mm)
• Parfocal zoom
• Minimum focus distance: 0.76 m
• Front diameter: 80 mm
• Filter thread: 77 mm
• Iris blades: 16
• Optical design: 17 elements in 11 groups
• Weight: approx. 1.7 kg

• Type: fixed-focal-length cinema macro lens
• Focal length: 90 mm
• Aperture: T2.8–T22
• Image circle: 46.5 mm (full frame / Vista Vision)
• Maximum magnification: 1.5:1
• Minimum focus distance: 0.258 m
• Focus rotation: 300°
• Diaphragm blades: 16
• Front diameter: 114 mm
• Filter: M105
• Mounts: PL / LPL / EF
• Weight: approx. 1,280 g

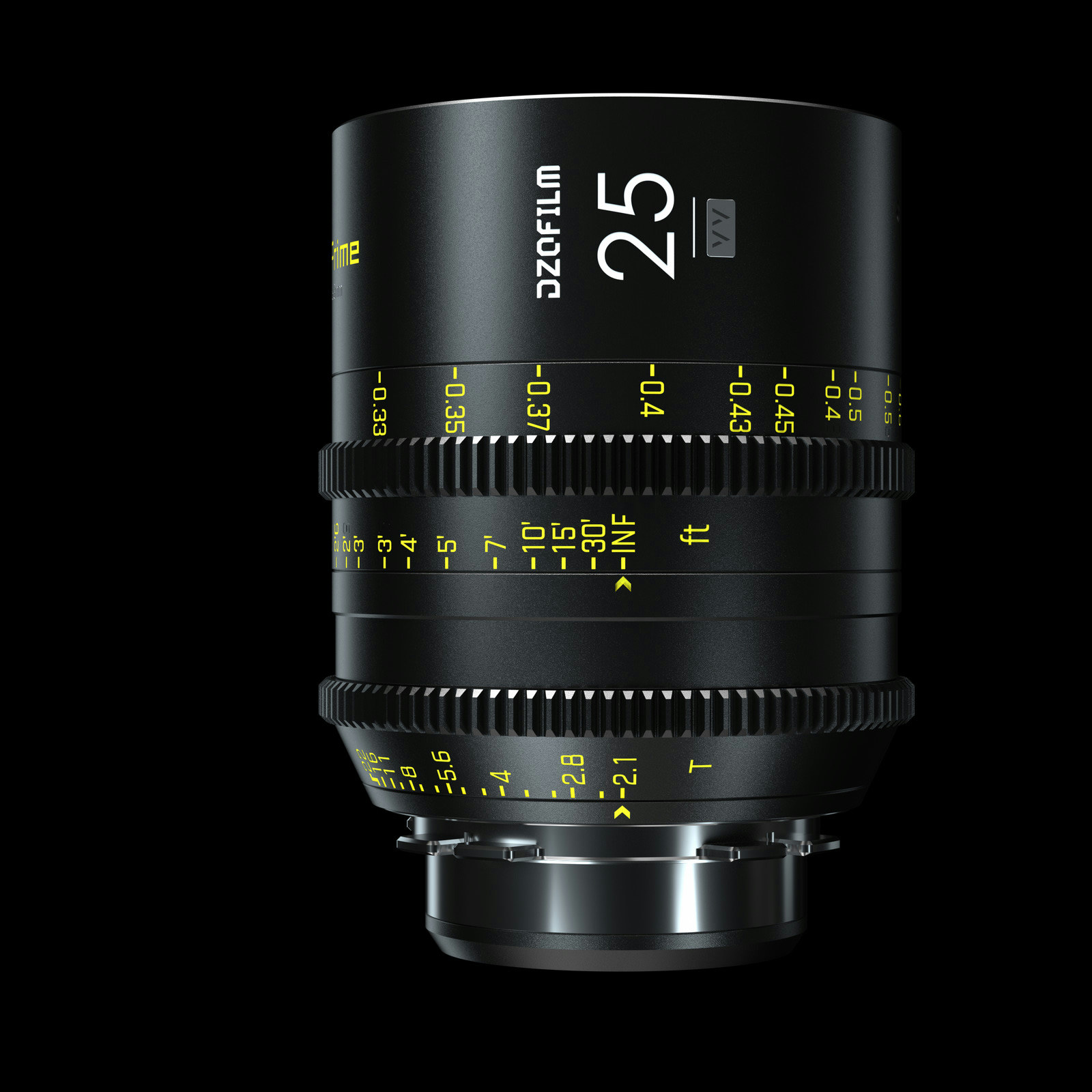

• Focal length: 25 mm
• Aperture: T2.1
• Mount: PL (Canon EF interchangeable lens kit)
• Cover: full frame / Vista Vision (image circle Ø46.5 mm)
• Minimum focus distance: 0.30 m
• Front diameter: 80 mm
• Filter thread: 77 mm
• Diaphragm blades: 16
• Length: approx. 99 mm
• Weight: approx. 950 g

• Type: fixed-focal-length cinema lens
• Focal length: 35 mm
• Aperture: T2.1
• Image circle: 46.5 mm (Full Frame / Vista Vision)
• Minimum focus distance: 0.46 m
• Focus rotation: 270°
• Filter: M77
• Rings: standard 0.8
• Mounts: PL / EF (interchangeable)
• Weight: approx. 962 g

• Focal length: 90 mm
• Aperture: T2.8
• Type: macro, magnification ratio up to 1.5:1
• Mount: PL or EF (interchangeable)
• Cover: full frame (46.5 mm image circle)
• Minimum focusing distance: 0.258 m
• Front diameter: 80 mm
• Filter thread: M77
• Diaphragm blades: 16
• Weight: about 800 g
• Respiration: virtually none

• Frame: PL
• Cover: full-page
• Focal length: 18–28 mm (probe zoom)
• Aperture: Constant f/8
• Maximum magnification: 2.1:1
• Minimum working distance: 6 mm
• Version: 360° (periscopic rotation)
• Focusing breath: approx. 0.5% at 24 mm
• Optics: 7 HRI elements + 6 ED elements
• Water resistance: IP57; tip can be submerged up to 28 cm
• Operating temperatures: -30 °C to +70 °C
• Construction: aerospace-grade aluminum alloy

• Focal length: 18–55 mm (3x zoom)
• Aperture: Constant f/2.9
• Mount: Sony E
• Coverage: Super 35 / APS-C
• Minimum focus distance: 0.85 m (0.38 m in macro mode)
• Front diameter: 85 mm
• Filter diameter: 82 mm
• Diaphragm: 9 blades
• Rings: 0.8-tooth focus/zoom/aperture rings, 200° focus rotation
• Weight: 980 g

• Type: Compact Cinema-TV Zoom Lens
• Mount: Sony E
• Focal length: 50–135 mm
• Aperture: Constant f/2.9
• Coverage: Super 35 / APS-C (28.5 mm image circle)
• Minimum focusing distance: 1.2 m (0.85 m in macro mode)
• Aperture blades: 9
• Front diameter: 85 mm
• Filter thread: 82 mm
• Length: 206.3 mm
• Rings: zoom, focus, and manual iris, 0.8-step increments

• Mount: Canon EF
• Aspect Ratio: Full Frame / VistaVision (44.7 mm image circle)
• Focal length: 12 mm
• Opening: T2.9 – T22
• Field of view: 122°
• Optical design: 16 elements in 10 groups
• Minimum focus distance: 18 cm (from the sensor)
• Focus rotation: 270°, 0.8 MOD rings
• Diaphragm: 7 blades
• Filter thread: 95 mm (including 114 mm front ring)
• Length: 87 mm
• Weight: 675 g

• Frame: PL
• Aspect Ratio: Full Frame / VistaVision (44.7 mm image circle)
• Focal length: 12 mm
• Opening: T2.9 – T22
• Field of view: 122°
• Optical design: 16 elements in 10 groups
• Minimum focus distance: 18 cm (from the sensor)
• Focus rotation: 270°, 0.8 MOD rings
• Diaphragm: 7 blades
• Filter thread: 95 mm (including 114 mm front ring)
• Length: 87 mm
• Weight: 675 g

• Focal length: 12 mm
• Opening: T2.9 – T22
• Mount: PL (also available in EF, RF, E, and L)
• Aspect ratio: full frame / VistaVision (Alexa LF, Monstro)
• Distortion: virtually zero (Zero-D)
• Minimum focus distance: 0.18 m
• Front diameter: 95 mm (114 mm ring for matte box)
• Diaphragm: 7 blades
• Point rotation: 270°, toothed rings 0.8
• Weight: approx. 675 g

• Focal length: 28–75 mm
• Aperture: Constant f/2.9
• Cover: full frame (image circle 43.2 mm)
• Mount: Original PL, interchangeable EF (E, RF, Z, L available)
• Minimum focus distance: 0.49 m
• Parfocal: yes, focal length 270°
• Optical design: 22 elements in 18 groups
• Diaphragm: 10 blades
• Front diameter: 80 mm, filter thread: 77 mm
• Rings: focus/iris/zoom in 0.8-step increments, built-in back focus adjustment
• Weight: about 1.4 kg

• Type: Series of 5 fixed-focal-length cinema lenses
• Focal lengths: 16 / 24 / 32 / 50 / 85 mm
• Opening: T1.9 – T22
• Frame: PL
• Cover: Super 35
• Minimum focus distance: 0.25 m (16 mm) to 0.9 m (85 mm)
• Front diameter: 95 mm (standard)
• Weight: 1.0 to 1.2 kg per lens
• Design: ARRI / Zeiss

• Set contents: 14mm T3.1, 20mm T1.5, 24mm T1.5, 35mm T1.5, 50mm T1.3, 85mm T1.3, 135mm T2.2
• Mount: Canon EF (electronic contacts)
• Cover: Full Frame
• Front diameter: 114 mm (consistent across the entire series)
• Rings: 0.8 cinema gears, with identical position and travel across all focal lengths
• Markings: on both sides of the barrel; glow-in-the-dark for nighttime use
• Iris: 11 blades (24 mm)
• Minimum focus distance: 0.30 m (24 mm)

• Type: Set of 6 vintage fixed-focal-length lenses
• Focal lengths: 14, 24, 35, 50, 85, 135 mm
• Mount: Canon FD adapted to EF
• Cover: full-page
• Result: K35-style vintage look (warm flares, soft contrast)
• Focus: manual

• Type: Anamorphic fixed-focal-length lenses (set of 5 lenses)
• Squeeze factor: 1.8x
• Series range: focal lengths from 32 to 180 mm
• Maximum aperture: T2.3 (depending on focal length)
• Cover: full size 24×36
• License: PL (LPL accepted)
• Metadata: Cooke /i technology
• Front diameter: 110 or 136 mm, depending on the focal length

• Type: Cinema fixed-focal-length lens series
• Aperture: T2.0 – T22 (300 mm: T2.8)
• Frame: PL with /i Technology contacts
• Cover: Super 35
• Available range: 12 to 300 mm (18 focal lengths)
• Aperture: 8-blade linear iris
• Front diameter: 110 mm (156 mm for the 12 mm model)
• Metadata: /i Technology (spot, iris, distortion and vignetting maps)

• Type: Cinema prime lens series
• Vespid Series: 12 to 125 mm
• Aperture: T2.1 (16 mm and 90 mm macro: T2.8)
• Mount: EF (interchangeable PL)
• Image circle: 46.5 mm (full frame / VV)
• Iris: 16 blades
• Front diameter: 80 mm (standard)
• Filter thread: 77 mm
• Weight: 732 to 943 g per lens
• Construction: aluminum alloy, APO design

• Type: Cinema fixed-focal-length lens series
• Mount: PL (EF-compatible)
• Coverage: full frame / VV (46.5 mm image circle)
• Aperture: T2.1 – T22 (12 mm and 90 mm macro: T2.8)
• Focal lengths in the lineup: 12, 16, 21, 25, 35, 40, 50, 75, 90 (macro), 100, and 125 mm
• Standard front diameter: 80 mm
• Filter thread: M77
• Rings: pitch 0.8, uniform spacing throughout the series
• Weight per lens: approx. 725 to 981 g

• Set: 16 / 21 / 25 / 35 / 50 / 75 / 100 mm
• Aperture: T2.1 at most focal lengths (16 mm: T2.8)
• Cover: full frame / VV (image circle 46.5 mm)
• Mount: PL (EF-compatible)
• Front diameter: 80 mm (same for the entire set)
• Filter thread: M77
• Diaphragm: 16 blades
• Minimum focus distance: 0.25 to 0.79 m, depending on the focal length
• Weight: approximately 730 to 940 g per lens
• Construction: aluminum alloy, manual focus/aperture rings

• Type: Series of fixed-focal-length cinema lenses based on the Leica M
• Lens lineup: 21 / 24 / 28 / 35 / 50 mm f/1.4, 50 mm f/0.95 Noctilux, 75 / 90 mm f/2
• Camera body: Leica M
• Cover: full frame (image circle 43.3 mm)
• Rings: 0.8-tooth pitch for follow focus
• Focus: manual
• Weight: approximately 380 g (35 mm) to 835 g (50 mm Noctilux)

• Type: Set of 6 vintage Leica R fixed-focal-length lenses
• Camera modification: EF mount, 0.8-module stepped rings
• Cover: full frame / VistaVision
• Focus: manual
• Characteristics: non-clinical sharpness, very soft bokeh, moderate contrast
• Era: Leica R lenses (1970s–1990s)

• Type: Set of 6 refurbished vintage Leica R fixed-focal-length lenses
• Rehousing: GL Optics, aluminum barrel, detented iris
• Frame: PL (stainless steel)
• Cover: full frame / VistaVision
• Rings: focus and 0.8-step iris, standardized positions across the series
• Focus: manual, long focus travel
• Characteristics: soft sharpness, silky bokeh, moderate contrast

• Type: Series of 5 fixed-focal-length cinema lenses
• Focal lengths: 14 mm T2.4, 25 / 35 / 50 / 85 mm T1.9
• Mount: PL (screw-on rear filters)
• Image circle: 46 mm (full frame)
• Diaphragm: 10 blades
• Focus rotation: 300°
• Filter thread: 77 mm standard
• Identical dimensions across focal lengths

• Type: Vintage fixed-focal-length lens series
• Lenses: Zeiss (Contax series)
• Mount: EF (conversion)
• Cover: full-page
• Focus: manual

• Focal length: 18 mm, 24 mm, 35 mm, 50 mm, 75 mm, 100 mm
• Maximum aperture: T1.5
• Mount: Sony E
• Front diameter: 95 mm
• Minimum focusing distance: 30 cm (18 mm), 30 cm (24 mm), 35 cm (35 mm), 50 cm (50 mm), 70 cm (75 mm), 100 cm (100 mm)
• Field of view: 89.8° (18 mm), 73.7° (24 mm), 54.4° (35 mm), 39.6° (50 mm), 26.2° (75 mm), 18.4° (100 mm)
• Focus ring rotation: 300°
• Number of diaphragm blades: 11
• Optical construction: 14 elements in 11 groups (18 mm), 13 elements in 11 groups (24 mm), 13 elements in 10 groups (35 mm), 12 elements in 9 groups (50 mm), 11 elements in 9 groups (75 mm), 11 elements in 9 groups (100 mm)
• Length: 123 mm (18 mm), 122 mm (24 mm), 120 mm (35 mm), 118 mm (50 mm), 117 mm (75 mm), 116 mm (100 mm)
• Weight: 1.1 kg (18 mm), 1.0 kg (24 mm), 0.9 kg (35 mm), 0.8 kg (50 mm), 0.9 kg (75 mm), 1.0 kg (100 mm)
• Compatibility: Full-frame
• Coating: Zeiss T* anti-reflective coating
• Body material: Aluminum
• Operating temperature: -20°C to +40°C

• Type: Vintage cinema fixed-focal-length lens series
• Aperture: T2.1 (10 mm: T2.2; long focal lengths: T3)
• Mount: PL (or ARRI bayonet, depending on the model)
• Cover: Super 35
• Historical lineup: Distagon 10–28 mm, Planar 32–135 mm, Sonnar 180 mm
• MkII Version: Integrated Gear-Driven Stitch Rings
• Characteristics: subtle contrast, natural rendering on digital sensors

• Focal length: 75 mm
• Opening: T2.9 – T16
• Anamorphic factor: 1.6x
• Cover: full-page
• Minimum focus distance: 0.85 m (2.8 ft)
• Filter diameter: 82 mm
• Aperture: 10 blades (oval bokeh)
• Available mounts: E, RF, L, Z
• Rings: toothed focus and iris rings (follow focus)

Technical Specifications

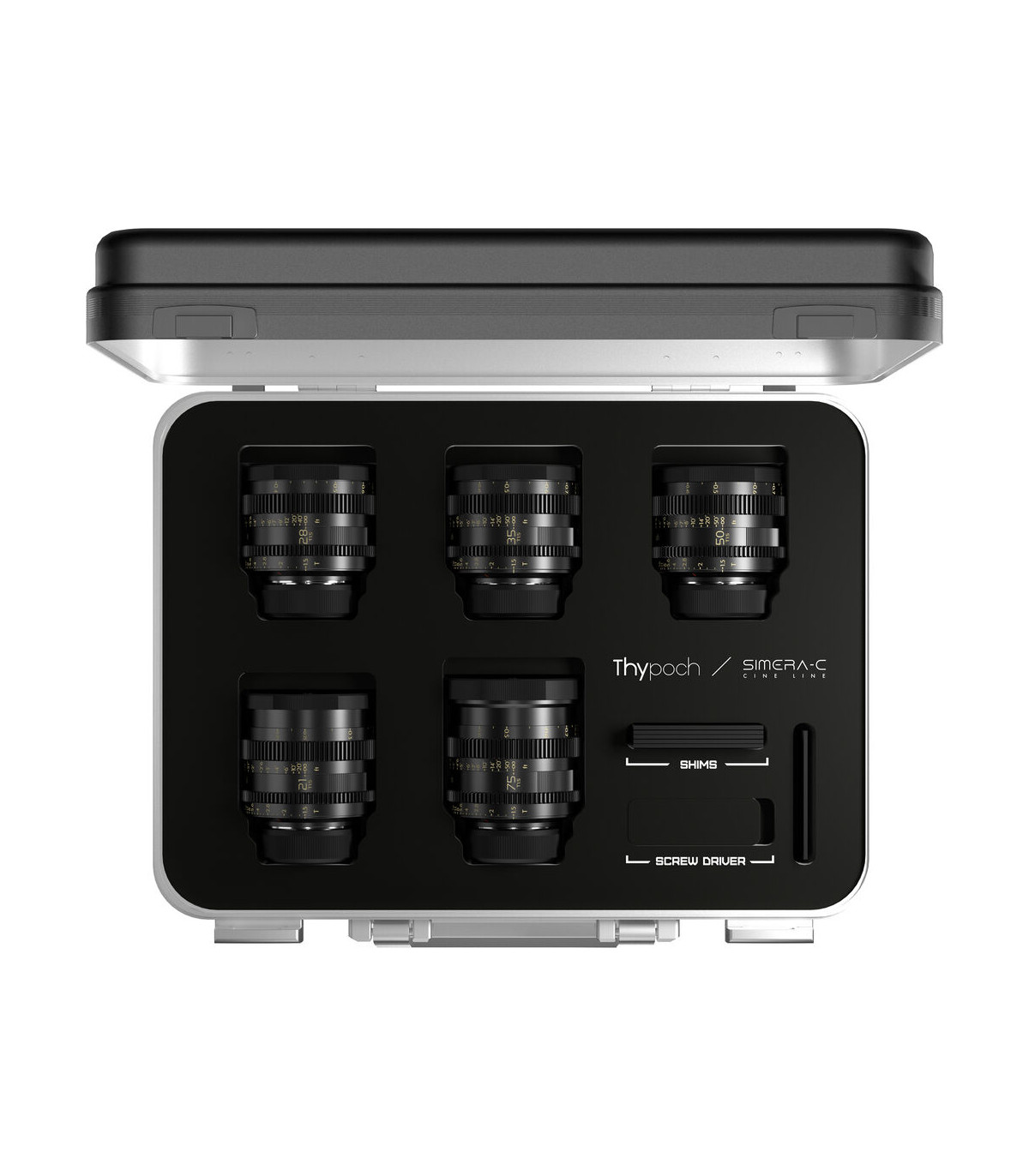

• Focal lengths: 21, 28, 35, 50, and 75 mm
• Aperture: T1.5 to T16 (fixed)
• Mount: Sony E (native)
• Coverage: full frame (43.2 mm image circle), Super 35, and APS-C
• Diaphragm: 16 blades
• Optics: aspheric, ED, and high-refractive-index elements; multi-layer coating
• Resolution: 8K-compatible
• Adjustment range: 210°
• Weight: approximately 390 to 470 g per lens
