Technical Specifications – 30x60 Pancake / Chinese Half-Ball for BF2

● Dimensions: 30 x 60 cm
● Shape: Chinese half-sphere (pancake)
● Compatibility: Suitable for BF2 heads (2-inch Baby-Fresnel)
● Use: Soft light diffusion, ideal for softening direct light sources
● Material: High-quality diffuser fabric, lightweight frame
● Mounting: Quick-mount system for compatible lights
● Weight: Approximately 0.5 kg
● Color: Neutral white for accurate color temperature reproduction
● Included accessories: Mounting ring, carrying bag
● Applications: Film shoots, commercials, interviews, TV sets
● Care: Dry cleaning recommended; foldable for transport
● Delivery and pickup: Service available within Paris city limits

Technical Specifications for the Caligri AIRTUBE 100

Dimensions and Weight

● Length: 100 cm
● Diameter: 20 cm
● Weight: 1.2 kg (tube only)

Compatibility and Use

● Compatible with Astera Titan, Helios, and AX1 LED tubes
● Quick-release mounting system for installation on a tripod or suspension
● Used to diffuse soft light for film shoots, interviews, TV sets, and photo shoots

Materials and Design

● Translucent polyester fabric structure
● Flexible internal frame for shape retention
● Zip and Velcro closure for quick insertion of the LED tube

Included Accessories

●
carrying case ●
mounting straps ● Adapters for various LED tube models

Related Services

● Delivery and pickup within Paris city limits
● Technical support upon request

Technical Specifications for the Caligri AIRTUBE 50

● Inflatable diffuser tube designed for LED panels
● Length: 50 cm
● Diameter: 20 cm
● Weight: 0.3 kg
● Material: translucent polyester fabric
● Compatibility: suitable for Caligri Airlite, Astera Titan, Helios, AX1, and other similar LED panels
● Attachment: built-in Velcro straps
● Inflation: standard valve, manual pump included
● Operating temperature: -10°C to +40°C
● Diffusion rating: 1.5 stops
● Use: even light diffusion, reduction of harsh shadows
● Included accessories: carrying bag, manual pump
● Folded dimensions: 25 x 15 x 5 cm
● Cleaning: hand washable
● Color: translucent white
● Water resistance: not waterproof; indoor use recommended
● Manufactured in Germany

Technical Specifications for the Caligri Eclipse 40

● Light source: COB LED
● Output power: 400 W
● Color temperature: 2,700 K to 6,500 K (continuously adjustable)
● Color Rendering Index (CRI): ≥ 95
● Luminous flux: up to 40,000 lumens
● Lighting control: DMX512, RDM, local control
● Dimming: 0 to 100% flicker-free
● Beam angle: 120° native, adjustable with accessories
● Power supply: 100–240 V AC, 50/60 Hz
● Power consumption: 420 W max
● Cooling: Built-in silent fan
● Weight: 7.5 kg
● Dimensions: 340 x 260 x 180 mm
● Connectors: 5-pin XLR (DMX), PowerCON
● Compatible accessories: softbox, barn doors, grids, Bowens mount
● Applications: key light, mood lighting, studio, outdoor shoots
● Mounting: 16 mm spigot (baby pin) or 28 mm spigot (junior pin)

Technical Specifications: Chiméra Arri Skypanel S60

● Soft-light LED panel, rectangular format 645 x 300 mm
● Variable color temperature range from 2,800K to 10,000K
● Color Rendering Index (CRI) ≥ 95
● Control of hue, saturation, and intensity (HSI)
● Maximum output power: 430W
● Luminous flux: up to 44,000 lumens
● Dimmable from 0 to 100% without color shift
● Local control, DMX, RDM, Art-Net, sACN, and wireless remote control
● 100–240 V AC mains power or 23–36 V DC battery
● Panel weight: 8.6 kg (without power supply)
● Panel dimensions: 780 x 300 x 130 mm
● Compatible with a wide range of accessories (softboxes, grids, etc.)
● Quiet ventilation system with multiple modes
● Sturdy aluminum housing
● Connectivity: 3-pin XLR, RJ45, USB for firmware updates
● Power consumption: 450W maximum
● Protection rating: IP20 (indoor use)

Technical Specifications for the Chimera M Quartz - 90x120 cm

● Dimensions: 90 x 120 cm (36" x 48")

● Type: Rectangular softbox

● Compatibility: Suitable for quartz-halogen light sources up to 2000W

● Mount: Compatible with Chimera mounting rings (speed rings) for Fresnel, HMI, tungsten, and flash lights

● Fabric: Heat-resistant fabric, designed for heavy-duty use with heat sources

● Airflow: Comes with a removable interior diffuser and front diffuser

● Structure: Lightweight and sturdy aluminum frame; quick assembly using flexible rods

● Weight: Approximately 2.5 kg (excluding the mounting ring)

● Included accessories: Carrying case, diffusers, mounting rods

● Use: Ideal for soft, even lighting in the studio or on set

● Service: Pickup and delivery available in Paris

Technical Specifications for the CHIMERA SOFTBOX L (130x180 cm)

● Dimensions: 130 x 180 cm
● Depth: 80 cm
● Weight: 3.2 kg (excluding frame and accessories)
● Compatibility: Fits most strobes and flash heads with a compatible mounting ring (Speed Ring not included)
● Fabric: Main diffuser made of high-quality fabric, provides even light distribution
● Structure: Aluminum frame, assembled with flexible rods
● Included accessories: Carrying case, internal diffuser, front diffuser
● Use: Designed for soft, wide-angle lighting; ideal for portraits, interviews, studio sets, and commercial shoots
● Operating temperature: -20°C to +60°C
● Durability: Heat-resistant fabric for tungsten and HMI lamps up to 1200W
● Setup: Quick installation; requires an adapter ring compatible with the light source
● Total weight in standard configuration (with diffusers): 4.1 kg
● Folded dimensions: 130 x 20 x 20 cm (approx.)
● Color: Black exterior, white reflective interior
● Care: Dry cleaning recommended

Technical Specifications for the CHIMERA VORTEX 4

Light source

● 4x4-foot (122 x 122 cm) RGBW LED panel
● Power output: 900 W
● Color temperature range: 2,800K to 10,000K
● Full-spectrum RGBW control
● Color Rendering Index (CRI): ≥ 95
● TLCI: ≥ 95

Control and Power Supply

● Local control via built-in display
● Wired and wireless DMX control (built-in LumenRadio CRMX)
● Control via mobile app (Bluetooth)
● 100–240 V AC power supply
● Power consumption: 900 W
● PowerCON TRUE1 power connector

Features

● Built-in effects: strobe, pulse, color effects
● Dimming from 0 to 100% without color shift
● Control modes: CCT, HSI, RGBW, Effects
● User-programmable presets

Construction and Assembly

● Weight: 13.5 kg (without accessories)
● Dimensions: 122 x 122 x 3.5 cm (panel only)
● Sturdy aluminum frame
● Standard mounting via yoke with 28 mm (1-1/8") spigot
● Protection rating: IP65 (dust- and water-resistant)

Included Accessories

● Mounting yoke
● AC power supply
● PowerCON TRUE1 power cable
● Carrying bag
● Removable diffuser

Rental Service in Paris

● Equipment pickup and return by appointment in Paris
● On-site delivery and pickup available within Paris city limits
● Technical support available upon request

Technical Specifications for the Lantern CHIMERA PANCAKE L SD

● Type: Pancake Lantern
● Model: CHIMERA PANCAKE L SD
● Diameter: 114 cm (45")
● Depth: 30 cm (12")
● Weight: 1.5 kg
● Compatibility: Suitable for LED, HMI, and tungsten light sources with standard Chimera mount
● Diffusion: Diffusion fabric included for soft, even light
● Structure: Lightweight and durable aluminum frame
● Assembly: Quick setup with flexible rod system
● Use: Ideal for ambient lighting, wide diffusion, and shadow control
● Included Accessories: Carrying bag, diffusion fabric, frame
● Applications: Studios, film shoots, interviews, TV sets
● Folded Dimensions: 120 x 20 x 20 cm (approx.)
● Operating Temperature: -20°C to +40°C

Technical Specifications – Light Dome for Evoke Ø150 (2 Diffusers and Louver)

● Compatible with the Nanlux Evoke series, 150 cm diameter
● 16-rod quick-mount system for efficient setup and takedown
● Two diffusers included: standard and heavy diffusion for precise control over light softness
● Louver (honeycomb grid) included for directional control and spill reduction
● High-strength fabric construction, suitable for heavy-duty use in the studio or outdoors
● Approximate weight: 3.5 kg (excluding accessories)
● Dome depth: 60 cm
● Even light distribution, ideal for portraits, interviews, and set shots
● Carrying bag included to simplify logistics on set
● Compatible with Bowens mounts (via adapter if necessary)
● Operating temperature: -10°C to +40°C
● Accessory designed to optimize the light quality of Evoke LED lights

Technical Specifications of the LIGHTSTAR - AirLite 1000W Projector:

Light source:

• 1000W HMI lamp
• Color temperature of 5600K
• Lamp life: approximately 750 hours

Optics:

• Adjustable beam angle from 15° to 50°
• Built-in manual zoom

Screen:

• Built-in LCD screen for parameter control
• Displaying real-time operating information

Connectivity:

• DMX512 for remote control
• PowerCon connector for power supply

Other features:

• Sturdy aluminum housing
• Weight: 12 kg
• Quiet cooling for studio use

Technical Specifications for the Nanlite 120 cm Lantern

● Diameter: 120 cm
● Diffuser type: Spherical lantern
● Mount compatibility: Bowens
● Material: High-quality diffuser fabric
● Light transmission: 270° diffusion for even lighting
● Weight: 1.6 kg
● Folded dimensions: 120 x 120 x 40 cm
● Opening system: Quick-release frame structure
● Included accessories: Carrying case, light control skirt
● Recommended uses: Ambient lighting, portraits, interviews, film sets
● Compatibility: Suitable for LED lights and flashes equipped with a Bowens mount
● Operating temperature: -10°C to 45°C
● Installation: Tool-free assembly, secure attachment
● Fabric color: Neutral white for accurate color reproduction
● Care: Dry cleaning recommended

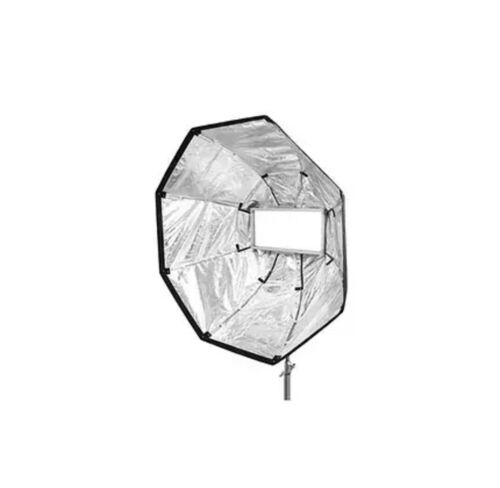

NANLUX Technical Specifications - Octa 150 cm

● Diameter: 150 cm
● Shape: Octagonal
● Type: Softbox
● Compatibility: Suitable for LED and HMI lights with a Bowens mount
● Fabric: High-quality fabric diffuser
● Honeycomb grid: Included for directional light control
● Weight: Approximately 2.5 kg (excluding accessories)
● Depth: 56 cm
● Opening system: Quick-open umbrella
● Use: Soft, even lighting for portraits, interviews, set lighting, and studio shoots
● Included accessories: Front diffuser, internal diffuser, honeycomb grid, carrying bag
● Portability: Foldable for easy transport and storage
● Operating temperature: -10°C to +40°C
● Color: Black exterior, white reflective interior
