Fresnel LED

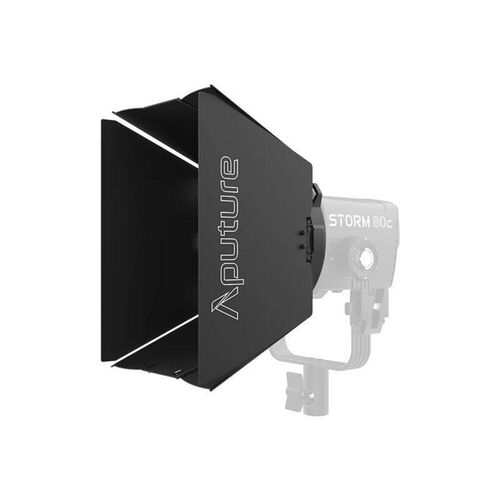

Technical Specifications for the Aputure Barn Doors for Fresnel 2X:

Compatibility:

• Designed for use with the Aputure Fresnel 2X

Construction:

• Durable metal construction for professional use
• Adjustable shutters for precise light control

Included accessories:

• Includes honeycomb grilles for additional light control
• Color filters for creative lighting effects

Dimensions and weight:

• Compact and lightweight for easy installation

Technical Specifications – Aputure Fresnel CF 12 for 1200X

● Compatible with the Aputure LS 1200d Pro LED light
● 12-inch (305 mm) carbon fiber Fresnel lens
● Beam angle control from 10° to 40°
● Optimized light transmission for maximum efficiency
● Passive ventilation system for heat dissipation
● Bowens mount
● Weight: 3.7 kg
● Dimensions: 410 x 410 x 220 mm
● Built-in handle for angle adjustment
● Lightweight and durable construction
● Secure locking system
● Accessory designed for professional use in the studio or on set

Technical Specifications

• Lens mount: Bowens mount
• Lens diameter: 300 mm
• Zoom range: 15° to 45°
• Light output: 1,000 W (tungsten equivalent)
• Color temperature: 2,800 K (adjustable from 2,200 K to 3,000 K using the included filters)
• Color accuracy: CRI ≥ 96, TLCI ≥ 97
• Light intensity: 102,000 lux at 1 meter with the Aputure F10 Fresnel accessory
• Dimming range: 0% to 100% without color distortion
• Power supply: 100–240 V AC, 50/60 Hz
• Power consumption: maximum 1,200 W
• Cooling: Active cooling with built-in fans
• Wireless Control: 2.4 GHz wireless control with a range of up to 150 meters
• Control methods: built-in control panel, 2.4 GHz remote control, Sidus Link app
• Connectivity: Bluetooth 5.0 for wireless control and firmware updates
• Dimensions (excluding accessories): 56.6 x 38.5 x 38.5 cm
• Weight (excluding accessories): 11.3 kg

Technical Specifications for the Nanlux FL 35 Fresnel Lens

● Fresnel lens designed for Nanlux LED projectors
● Lens diameter: 13.8 inches (approximately 35 cm)
● Beam control: adjustable angle from 12° to 40°
● Compatibility: Nanlux Evoke 1200 and Evoke 1200B
● Material: high-quality optical glass
● Mount: dedicated Nanlux quick-release mounting system
● Weight: approximately 5.5 kg
● Dimensions (L x W x H): 480 x 480 x 210 mm
● Included accessories: 8-leaf barn doors
● Use: precise light beam shaping, ideal for studio and on-location filming applications
● Operating temperature: -20°C to +45°C
● Protection rating: IP54 (dust and splash resistant)
