Panels, Tubes & Practices

Technical Specifications of the Aladdin A-Lite:

Light source:

• High-quality LED
• Adjustable color temperature from 2900K to 6300K
• Color Rendering Index (CRI) greater than 95

Power:

• Power consumption: 8W
• Luminous flux: 600 lumens

Power supply:

• Built-in battery rechargeable via USB-C
• Battery life of 1 to 2 hours, depending on intensity

Dimensions and weight:

• Dimensions: 15 x 8 x 1.5 cm
• Weight: 230 g

Connectivity:

• Control via mobile app (Bluetooth)

Included accessories:

• Magnetic diffuser
• Mounting Bracket

Technical Specifications for the ALADDIN - ALL-IN 1:

Image sensor:

• 35mm full-frame Exmor R CMOS sensor
• 10.2 effective megapixels for photo capture
• ISO sensitivity up to 102,400

Video:

• Maximum resolution: 4K UHD (3840 x 2160) at 120 frames per second
• Internal 10-bit 4:2:2 recording in XAVC S-I at up to 600 Mb/s
• External recording in 16-bit RAW via the HDMI output
• S-Log3, S-Cinetone, and HLG image profiles for a wider dynamic range
• Fast and Accurate Hybrid Autofocus
• Support for 16-bit linear RAW video via the HDMI output for optimal image quality

Screen:

• Touchscreen LCD
• 3.0-inch swivel
• 1,440,000-pixel resolution

Connectivity:

• Built-in Wi-Fi for remote control and file transfer
• Built-in Bluetooth for fast and easy wireless connection to other compatible devices

Other features:

• E-mount lens mount compatible with the Sony E-mount lens lineup
• Dual SD UHS-II memory card slots
• Compact, lightweight case (weighing just 715 g) with a built-in handle for a comfortable grip

Technical Specifications for the ALADDIN - ALL-IN 2:

Image sensor:

• RGBWW LED Sensor
• Adjustable color temperature from 2900K to 6200K
• Color Rendering Index (CRI) greater than 95

Video:

• Brightness control from 0 to 100%
• Built-in lighting effects such as a flash, a fire, and a broken light bulb
• Wireless DMX control for easy integration into professional lighting setups

Screen:

• Built-in OLED display for precise control of settings
• Real-time Parameter Display

Connectivity:

• Built-in Bluetooth for control via a mobile app
• Wireless DMX for easy integration into professional lighting setups

Other features:

• Sturdy yet lightweight construction for outdoor and studio use
• Powered by battery or AC adapter for maximum flexibility
• Versatile mounting bracket for easy installation on a variety of surfaces

Technical Specifications for the ALADDIN - FABRIC 350W 90x90cm:

Light source:

• High-Power LED
• 350W power
• Adjustable color temperature from 2900K to 5600K

Dimensions:

• 90 cm x 90 cm

Check:

• Built-in DMX Control
• Wireless control via remote control

Connectivity:

• Built-in Wi-Fi for remote control

Other features:

• Flexible and foldable for easy transport
• Color Rendering Index (CRI) greater than 95
• Powered by an AC adapter or a V-Mount battery

Technical Specifications for the ALADDIN - BI-FABRIC 2 Kit - 30x60 cm:

Light source:

• Two-color LED
• Adjustable color temperature from 2900K to 6000K
• CRI (Color Rendering Index) greater than 97

Power:

• Maximum power consumption: 100W
• Luminous flux: 1,400 lux at 1 meter

Check:

• Built-in dimmer to adjust the brightness
• Control via DMX or wireless remote control

Power supply:

• Powered by AC or a V-Mount battery

Dimensions and weight:

• 30x60 cm flexible panel
• Weight: 360 g (without accessories)

Included accessories:

• Diffuser
• Honeycomb grid
• Mounting Bracket
• Control unit with OLED display

• Light Source: Super-high CRI 200W Power LEDs
• CRI: CRI 97 / TLCI 98
• Color Temperature: 2850 K – 6098 K
• Beam Angle: 140°
• Size: 300 x 1200 mm
• Weight: 900 g
• Input: AC/DC 12–30 V / 90–240 V
• IP Rating: Panel IP32 / Dimmer IP21

Technical specifications of the complete ALADDIN MOSAIC 4X4 kit:

Dimensions:

• Panel dimensions: 120 x 120 cm
• Thickness: 5 mm

Lighting:

• Power: 800 W
• Color temperature: 2900K to 5600K (dual-color)
• Color Rendering Index (CRI): 95
• Luminous flux: 68,000 lumens

Check:

• Built-in DMX Control
• Wireless control via remote control or mobile app

Power supply:

• Power supply: 48V DC
• AC adapter included

Other features:

• Flexible and lightweight construction
• Water- and weather-resistant
• Easy to install with Velcro strips

Technical specifications of the complete ALADDIN MOSAIC 3X6 kit:

Dimensions and weight:

• Dimensions: 36 x 72 cm
• Weight: 1.2 kg

Lighting:

• Power: 200 W
• Color temperature: 2900K to 5600K
• CRI (Color Rendering Index): 98
• Luminous flux: 24,000 lumens
• Beam angle: 140°

Check:

• Control via DMX, Wi-Fi, and Bluetooth
• Mobile app for remote control

Power supply:

• Power supply: 12–30 V DC
• Compatible with V-Mount batteries

Other features:

• Flexible, lightweight structure
• Water- and dust-resistant (IP54)
• Easy to install with Velcro strips

Technical Specifications for the ALADDIN - MOSAIC 2X4 Complete Kit:

Lighting:

• Maximum power: 200W
• Color temperature: 2900K to 5600K
• Color Rendering Index (CRI): > 95
• Luminous flux: up to 16,000 lumens

Check:

• Built-in DMX Control
• Control via mobile app (iOS and Android)
• Built-in dimmer from 0 to 100%

Connectivity:

• Built-in Wi-Fi for remote control
• Built-in Bluetooth for fast and easy wireless connection to other compatible devices

Other features:

• Dimensions: 60 cm x 120 cm
• Weight: 1.8 kg
• Waterproof (IP65)
• Power: AC adapter or V-Mount battery

Technical Specifications of the Aputure Tri-8c:

Light source:

• Two-color LED
• CRI/TLCI of 95+
• Adjustable color temperature from 2300K to 6800K

Power:

• Maximum power: 120W
• Luminous flux: up to 24,000 lux at 0.5 m
• Continuous adjustment from 0 to 100%

Screen:

• Built-in LCD screen for parameter control

Connectivity:

• Wireless control via a 2.4 GHz remote control
• Compatible with the Sidus Link mobile app

Other features:

• Sturdy aluminum construction
• Powered by an AC adapter or V-Mount batteries
• Dimensions: 345 x 260 x 32 mm
• Weight: 2.45 kg

Technical Specifications for the ARRI SkyPanel S120-C 450W:

Light source:

• High-Power LED
• 450W power

Color temperature:

• Adjustable from 2,800K to 10,000K
• Green/Magenta Correction

Light Control:

• Adjustable intensity from 0 to 100%
• CRI > 95
• TLCI > 90

Connectivity:

• Built-in DMX for remote control
• Built-in Ethernet for network-based control

Other features:

• Sturdy aluminum housing
• Weight: 14 kg
• Dimensions: 1290 x 300 x 110 mm

Technical Specifications of the ARRI SkyPanel S30-C 220W:

Light source:

• RGBW LED
• 220W power
• Adjustable color temperature from 2,800K to 10,000K

Light Control:

• CRI/TLCI > 95
• Brightness control from 0 to 100%
• Control Modes: CCT, HSI, RGBW, Gel, and Source Matching
• Built-in lighting effects (fire, candles, lightning, etc.)

Screen:

• Built-in LCD screen for parameter control
• Intuitive user interface

Connectivity:

• Built-in DMX for remote control
• Built-in Ethernet for network-based control
• RDM (Remote Device Management) for remote device management

Other features:

• Sturdy and durable case
• Weight: 5.6 kg
• Mounting on a tripod or suspension system

Technical Specifications for the ARRI SkyPanel S60-C 450W:

Light source:

• LED
• 450W power
• Adjustable color temperature from 2,800K to 10,000K

Light Control:

• CRI > 95
• TLCI > 90
• Lighting Control via DMX, RDM, and LAN
• Built-in lighting effects (fire, candles, lightning, etc.)

Screen:

• Built-in LCD screen
• for easy monitoring and configuration

Connectivity:

• Built-in DMX for remote control
• Ethernet port for network connectivity

Other features:

• Floor-standing or wall-mounted
• Sturdy, weather-resistant housing
• Dimensions: 645 x 300 x 130 mm
• Weight: 12 kg

Technical Specifications of the Astera Helios FP2 4-Tube Kit:

Light source:

• RGB LED, Mint, Amber
• Adjustable color temperature from 1,750K to 20,000K
• High CRI (Color Rendering Index) for accurate color reproduction

Battery life:

• Built-in battery with up to 20 hours of battery life
• Fast charging in about 3 hours

Check:

• Wireless control via the AsteraApp
• Compatibility with wireless DMX protocols
• Advanced control features for custom lighting effects

Construction:

• Rugged, waterproof (IP65) housing for outdoor use
• Compact and lightweight design for easy installation

Accessories:

• Comes with mounting brackets and accessories for versatile installation
• Carrying case included for easy protection and transport

• LED Light Source: "Titan" LED Light Source
• Colors: RGBMintAmber
• Total LED power: 144 W
• LED power consumption: 92 W
• Luminous flux at 4000K: 5,800 lumens
• Luminous intensity at 4000 K at 1 m: 1570 lux
• CRI (Ra)/ TLCI 3200–6500 K*: ≥96
• Beam angle: 135° x 115°
• Field of view: 175° x 160°
• Strobe: 0–25 hertz
• Pixels: 32
• Battery life: Up to 20 hours
• Battery life: 70% after 300 cycles
• Charging time (nominal): 3 hours
• DC Input: 24 VDC – 4 A
• DC connector: 5.5 mm x 2.1 mm
• Wired DMX: Yes (via FP3-DTL / PWB-2-86)
• CRMX Receiver: Built-in
• IP Rating: IP65 (only with FP1-SP)
• Operating ambient temperature: 0–40 °C / 32–104 °F
• Weight: 2.9 kg / 6.39 lbs
• Dimensions: 2,031 mm x Ø 43 mm / 79.9" x Ø 1.7"
• Mounting options: 2x M5 threads, 2x brackets (with 2x M5 threads and 1x 1/4"-20UNC thread)

Technical Specifications for the ASTERA Kit - Set of 8 AX1s:

Light source:

• High-quality RGBW LEDs
• LED lifespan: 50,000 hours

Check:

• Wireless control via the AsteraApp™ app
• Wireless DMX via CRMX or W-DMX
• Wired Control via DMX

Battery life:

• Battery life of up to 20 hours
• Charging time: 7 hours

Connectivity:

• Built-in Bluetooth for fast and easy wireless connection to other compatible devices

Other features:

• IP65 protection rating for outdoor use
• Operating temperature: -20°C to 45°C
• Dimensions: 1035 mm x 42 mm
• Weight: 1.35 kg per tube

Technical Specifications for the Astera Luna Bulb Kit (8 Bulbs):

Light source:

• RGBW LED
• Adjustable color temperature from 1,800K to 6,500K
• High Color Rendering Index (CRI) for accurate color reproduction

Check:

• Wireless control via the AsteraApp
• Compatibility with wireless DMX protocols
• Synchronization and Dynamic Effects Features

Battery life:

• Built-in rechargeable battery
• Battery life of up to 20 hours, depending on usage

Connectivity:

• Built-in Bluetooth for quick and easy connection
• Compatibility with wireless lighting control systems

Other features:

• Sturdy, weather-resistant construction
• Compact and lightweight design for easy installation
• Kit containing 8 bulbs for wide-area lighting coverage

Technical Specifications of the DMG Lumière - SL1 Maxi-Switch:

Light source:

• High-Power LED
• Adjustable color temperature from 2700K to 6500K
• Color Rendering Index (CRI) greater than 94

Check:

• Built-in DMX Control
• Wireless control via the myMIX app
• Local control via a built-in control panel

Screen:

• Built-in OLED display for viewing settings

Connectivity:

• Built-in Wi-Fi for remote control
• Built-in Bluetooth for fast and easy wireless connection to other compatible devices

Other features:

• Sturdy, lightweight aluminum housing
• Powered by battery or AC power
• Weight: 4.3 kg

Technical specifications for the DOP Choice Snapgrid Astera Helios FP2 product:

Compatibility:

• Designed for use with Astera Helios FP2 tubes

Construction:

• Lightweight and durable construction
• Easy to install and remove

Feature:

• Allows you to control light distribution
• Reduces light spill for more precise lighting

Dimensions:

• Designed to fit the dimensions of Astera Helios FP2 tubes

Accessories:

• Comes with a carrying bag for easy storage and transport

Technical Specifications for the LiteGear LiteMat Plus 4:

Light source:

• Two-color LED
• Adjustable color temperature from 2600K to 6200K
• Color Rendering Index (CRI) greater than 95

Dimensions and weight:

• Dimensions: 533 mm x 1016 mm
• Weight: about 2.3 kg

Power and Control:

• Maximum power: 200W
• Control via DMX or built-in control panel
• Gradation from 0 to 100%

Connectivity:

• Compatible with DMX control systems

Other features:

• Compact and lightweight design for easy installation
• Compatible with a variety of projection and mounting accessories

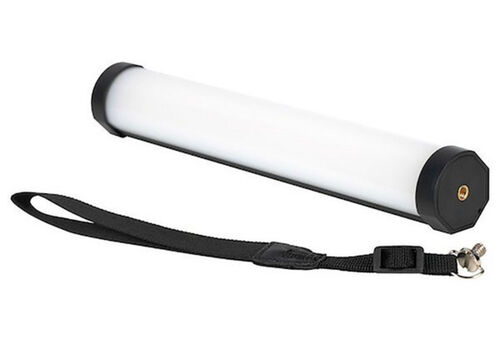

Technical Specifications

• Maximum power: 60 W
• Luminous flux: 2700K: 1305 lm / 6500K: 1405 lm / RGB: 0.5 m: 1400 lux, 1 m: 350 lux, 2 m: 85 lux
• Adjustable color temperature: 2700K to 7500K
• Color Rendering Index (CRI): 95+ (white) / 97+ (RGB)
• 0–100% flicker-free dimming
• Built-in lighting effects: flash, cycle, fade, strobe, police, TV, fire, paparazzi, candle, short circuit, explosion, soldering, arc welding, disco, club, thunderstorm, cloud, zipper, spotlight, butterfly, bird
• Built-in battery: 3.7 V / 2200 mAh
• Battery life: 2 hours at full power, at least 15 hours
• Power Input: USB Type-C
• Dimensions: 460 x 35 x 35 mm
• Weight: 660 g
• Impact-resistant, waterproof (IP68) polycarbonate housing

Technical Specifications

Key Features:

• Brand: Nanlite
• Model: PavoTube II 15X RGBWW x4
• Lighting type: LED tube
• Number of tubes: 4
• Light source: RGBWW LED (red, green, blue, warm white, cool white)
• Maximum power: 15 watts per tube
• Color temperature: 2700K to 6500K (continuously adjustable)
• Color Rendering Index (CRI): ≥ 95
• Luminous flux: 0 to 1,400 lumens per tube
• Beam angle: 180°
• Power Supply: AC/DC (mains or battery)
• Dimming: Continuously adjustable from 0 to 100%
• Dimensions: 600 x 35 x 35 mm (per tube)
• Weight: 416 g (per tube)

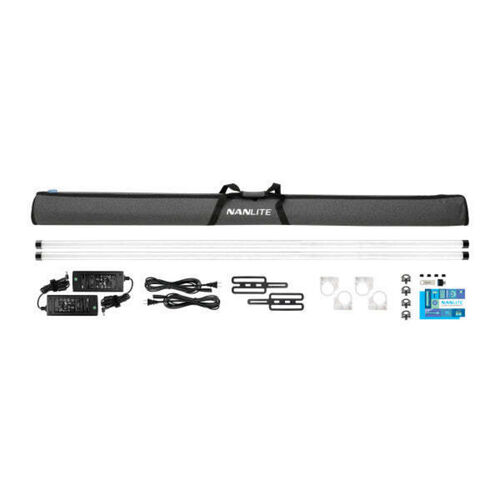

Technical Specifications of the NANLITE PAVOTUBE II 30X RGBWW LED:

Light source:

• RGBWW LED
• Color temperature adjustable from 2,700 K to 12,000 K
• Color Rendering Index (CRI) of 95

Light Control:

• Built-in dimmer from 0 to 100%
• Built-in lighting effects (flash, loop, pulse, etc.)
• Control via DMX, RDM, Bluetooth, and the NANLINK mobile app

Screen:

• Built-in OLED display for settings

Connectivity:

• Built-in Bluetooth for fast and easy wireless connection to other compatible devices
• DMX/RDM Control for Integration into Professional Lighting Systems

Other features:

• Powered by a built-in battery or AC adapter
• Durable, lightweight case for enhanced portability
• Versatile mounting bracket for easy installation

Technical Specifications of the Nanlite PavoSlim 240CL RGBWW LED Panel:

Light source:

• RGBWW LED
• Adjustable color temperature from 2700K to 6500K
• High Color Rendering Index (CRI) for accurate color reproduction

Check:

• Built-in DMX control for easy integration into professional lighting setups
• Wireless control via a dedicated mobile app
• Lighting Effect Presets for Creative Scenarios

Screen:

• Built-in control screen for easy adjustment of settings

Connectivity:

• Built-in Wi-Fi for remote control
• Bluetooth compatibility for quick connection to mobile devices

Other features:

• Compact and lightweight design for easy portability
• Flexible installation with a variety of mounting options
• Battery or AC power for versatile use

Technical Specifications for the ROSCO - Set of 4 DMG Dash Light Bars:

Light source:

• RGBWW LED
• Adjustable color temperature from 1,700K to 10,000K
• Color Rendering Index (CRI) greater than 95

Check:

• Control via the myMIX mobile app
• Wireless DMX-compatible
• Local control via built-in buttons

Battery life:

• Built-in rechargeable battery
• Up to 3 hours of battery life at full power

Connectivity:

• Built-in Wi-Fi for remote control
• Built-in Bluetooth for fast and easy wireless connection to other compatible devices

Other features:

• Compact and lightweight case
• Mounting accessories included
• Waterproof (IP65)
